M72 Training System

M72 Training System

U.S. Marine Corps photo by Cpl. Dylan Chagnon

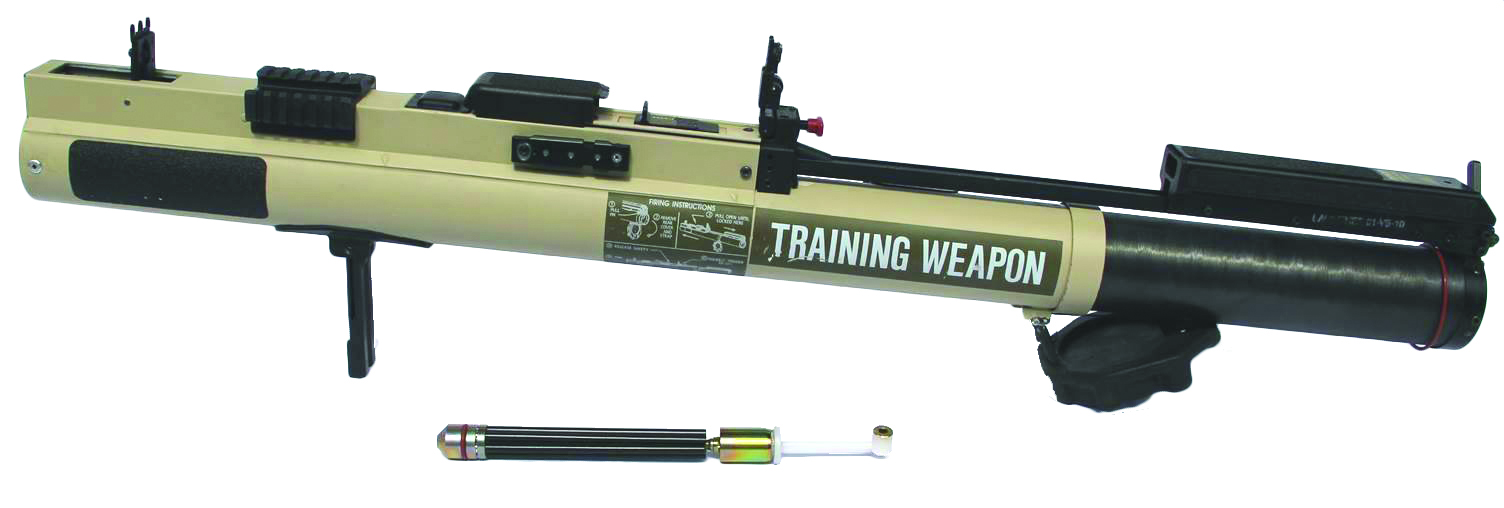

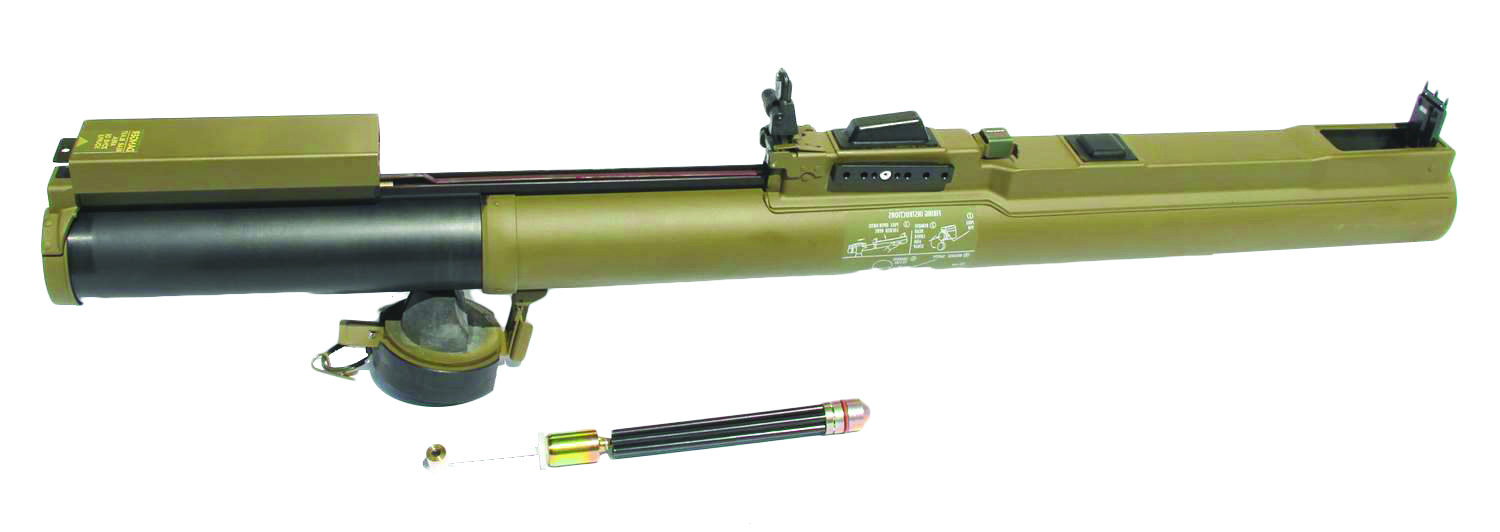

The M72 training system with the 21 mm subcaliber rocket gives a truly similar experience to the live round. The new on-axis trigger launcher may be adapted to use the 21 mm training rocket. The training system has the same weight as the combat system. This type of training is extremely cost-effective and safe for the user. The training launcher is reloadable multiple times.

Product specifications

System weight and caliber

3.5kg, 21mm

Projectile weight

0.16 kg

Carry/extended length

780mm/980mm

Warhead type

Steel rod with tracer

Muzzle velocity

220 m/s (at 21°C)

Dispersion

< 1.5 mils at 150m

Training range

50-700m

Maximum range

1000m

Service temperature

-30°C to +60°C

Status

NATO qualified: Legacy Launcher
NSN 1055-25-148-0378.
New Launcher (EC/RC) NSN
1055-25-160-4775.
