M72 Anti-Structure Munition A12

M72 Anti-Structure Munition A12

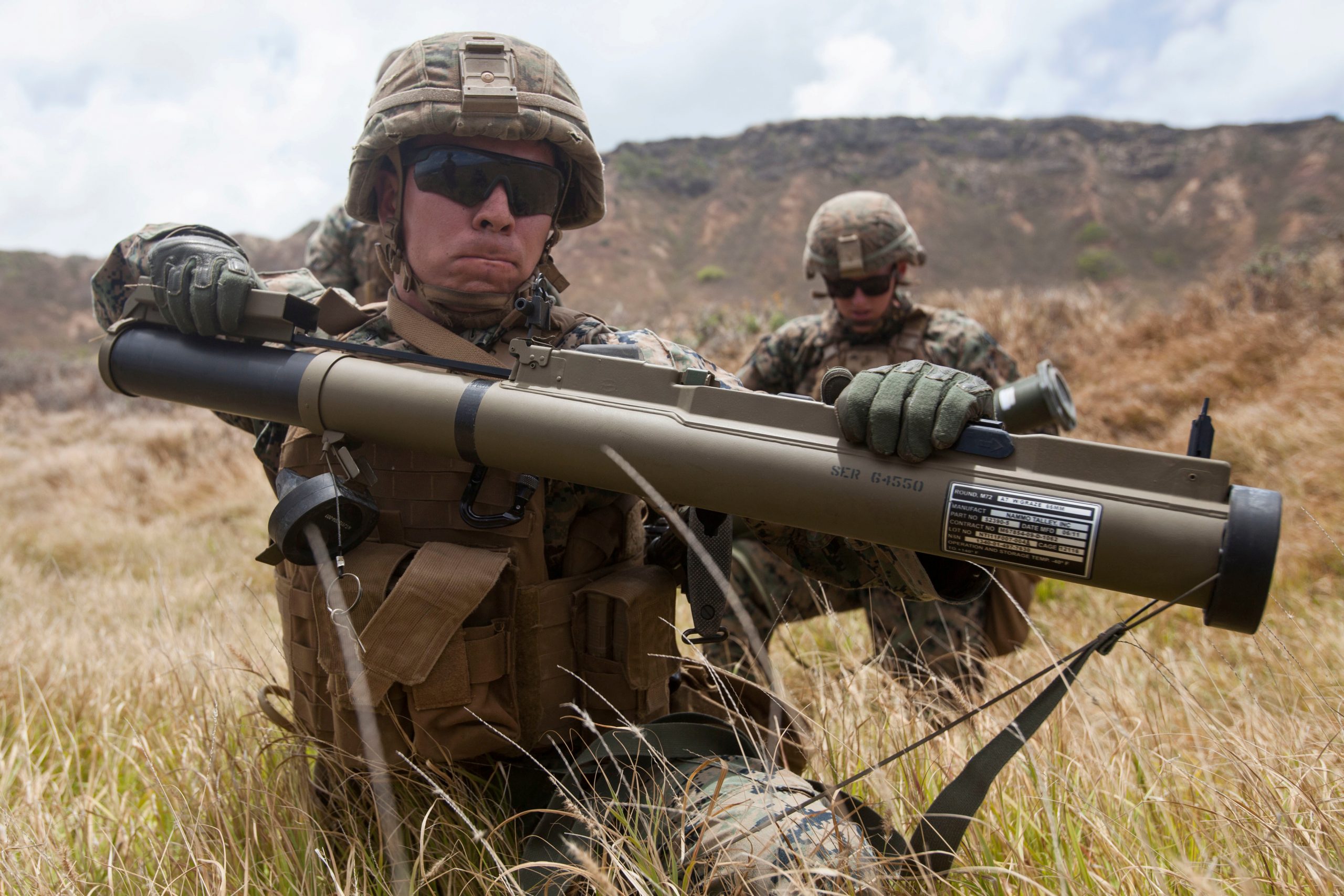

Photo: U.S. Marine Corps

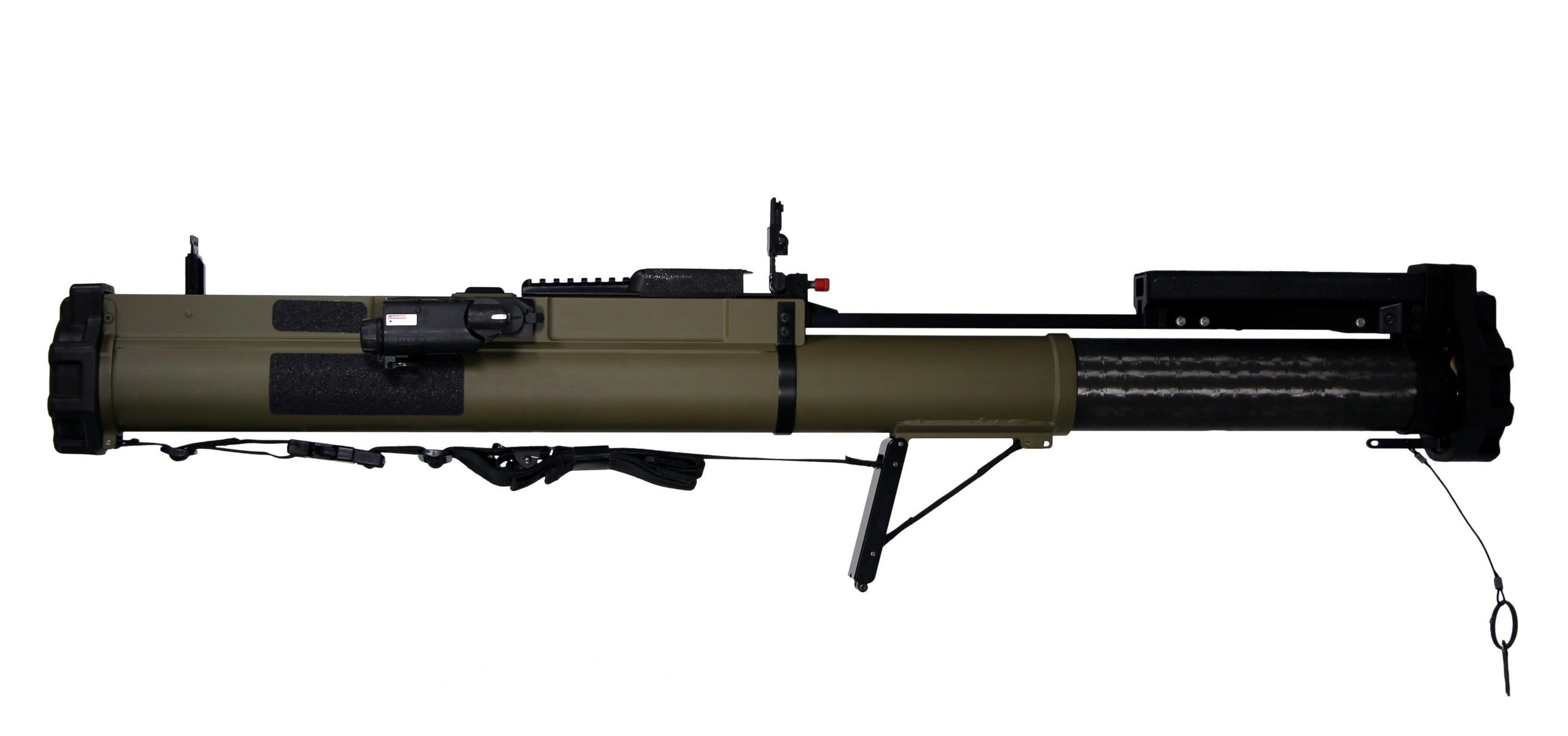

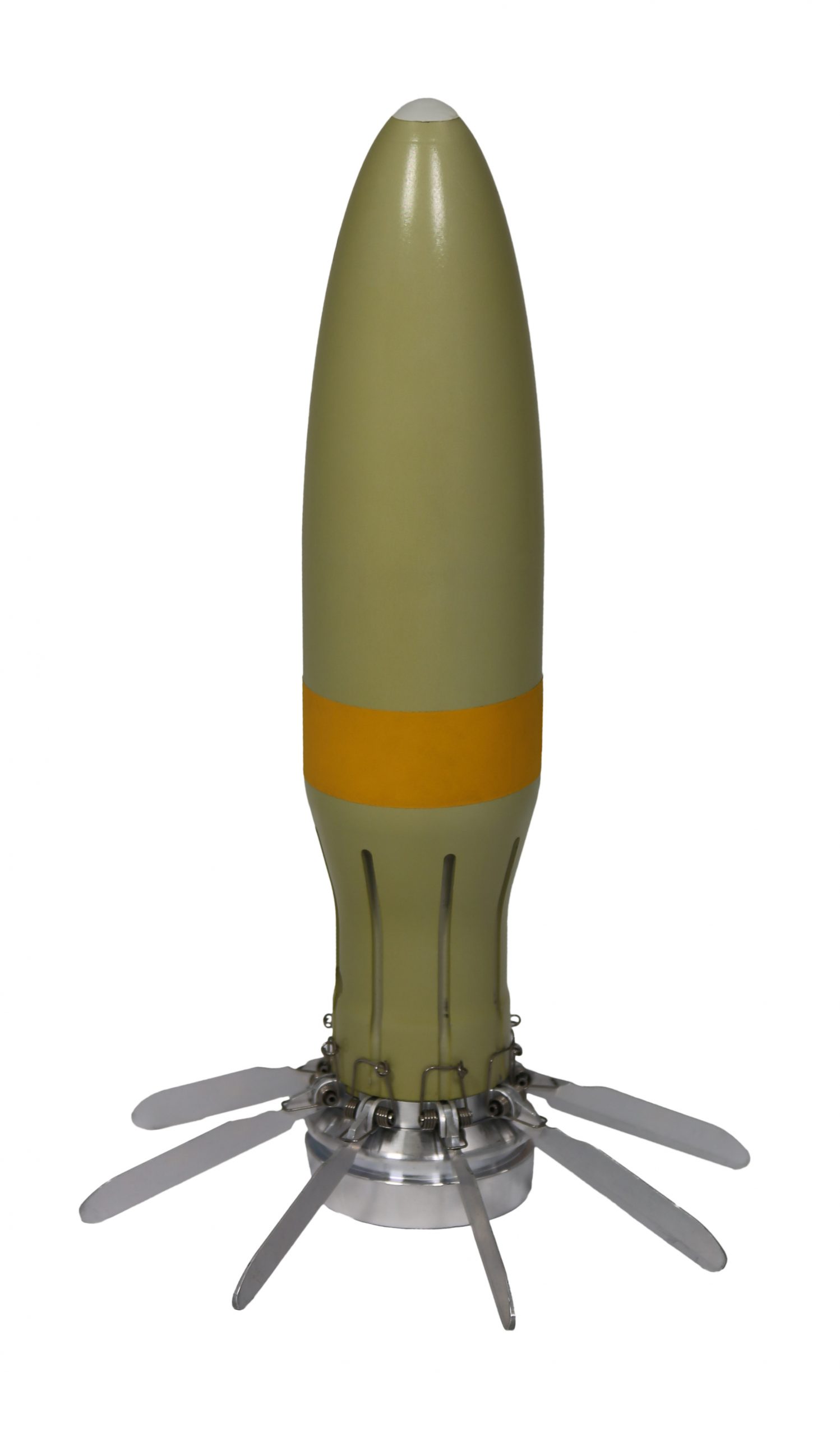

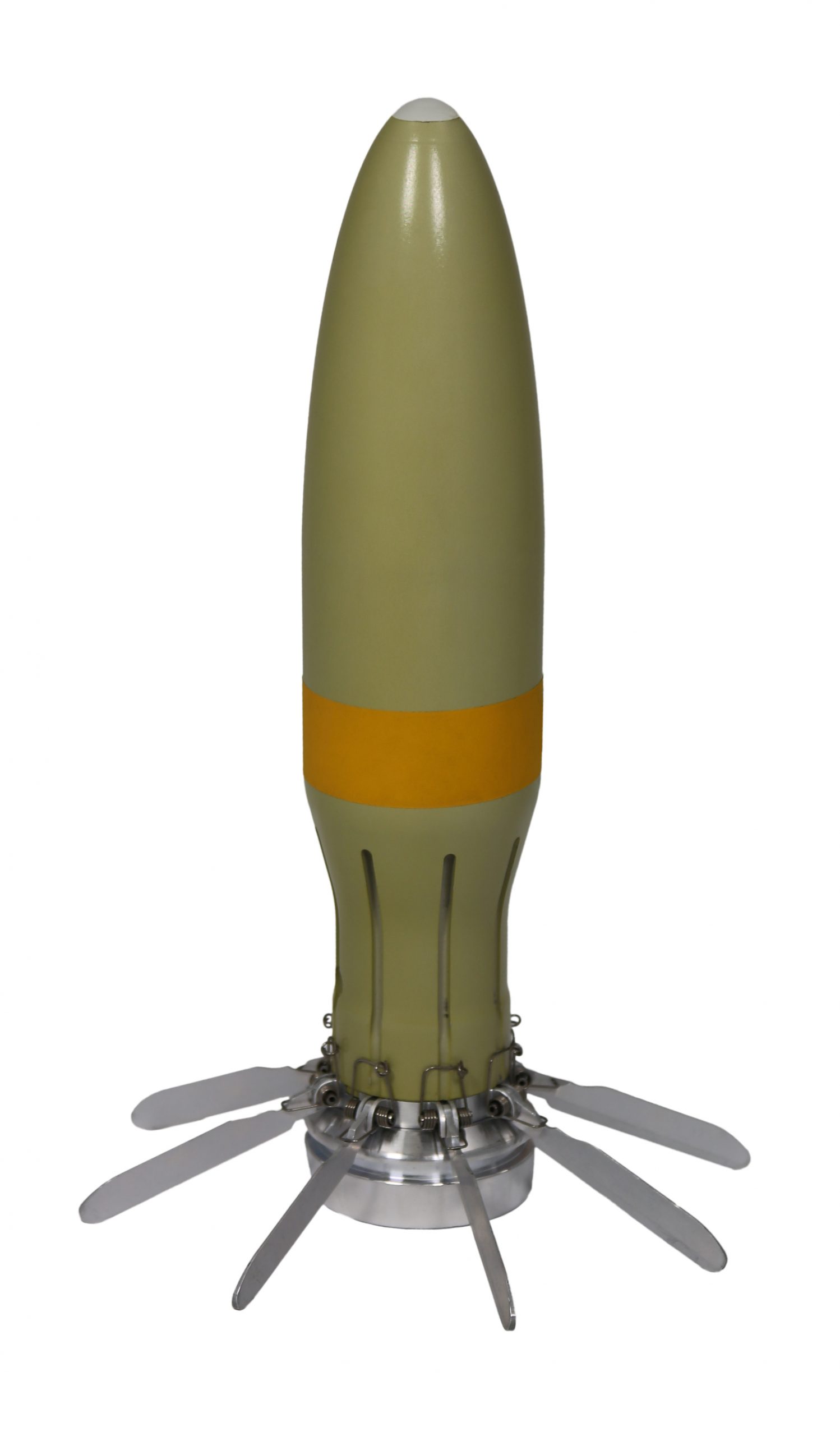

The Nammo M72 Anti-Structure Munition (A12) combines decades of innovation and Nammo expertise to deliver a world-leading close combat weapon. Disposable, easy to operate, and extremely lightweight and powerful, the M72 A12 provides significantly improved performance to the M72 A9 (Legacy ASM). The autonomous dual-mode fuze functions in fast (hard target) and delay (soft target) modes, while the optimized steel warhead body delivers increased fragmentation and ballistic performance. The M72 A12 is effective against brick, adobe, earthen fortifications, technical vehicles, 1/2 inch glass and exterior doors.

Product specifications

System weight and caliber

4.2 kg, 66 mm

Carry/extended length

760 mm/990 mm

Warhead type (explosive)

Anti-structure/fragmenting (combined effects HE)

Fuze

Dual safe, autonomous dual mode (fast/delay) for multi-target capability

Muzzle velocity

125 m/s (21°C)

Dispersion

< 1.5 mils at 250 m

Minimum, effective and maximum range

15 m, 300 m and 1 000 m

Service temperature

-40°C to +63°C

Status

Combat proven and in production.
