Nammo
Scalable Offensive Hand Grenade

Scalable Offensive Hand Grenade

U.S. Marine Corps photo by Lance Cpl. Angela Wilcox

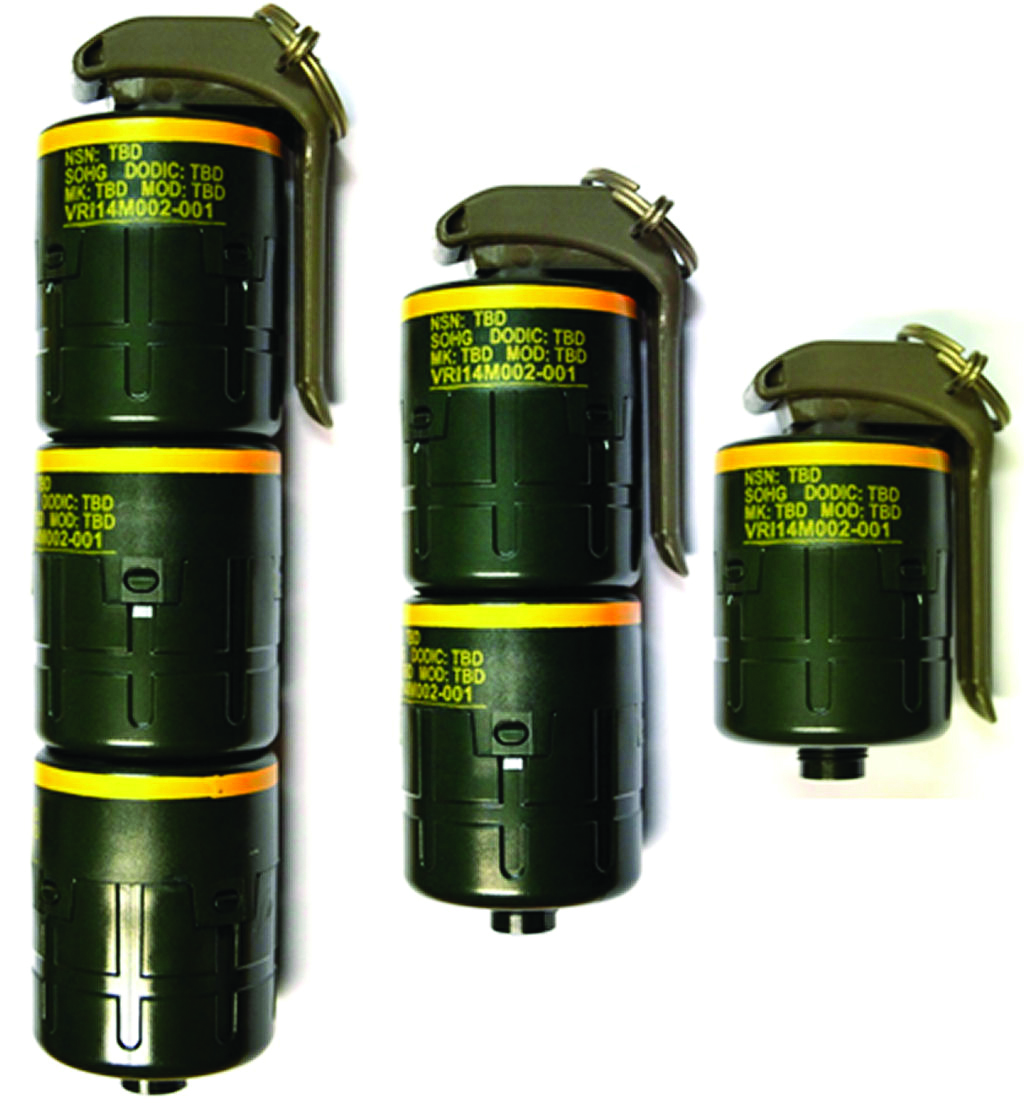

SOHG provides overpressure effects for a variety of uses by connecting one to three body modules together. Each module can be fuzed and grenades can be used either separately or by connecting up to three modules together.

Product specifications

Dimensions

Height with fuze 85 mm Module body diameter 53 mm

Weight

230 g/module with fuze and 190 g/module without fuze

Explosive filling

Comp B (hexotol 60/40), 115 g/module or PBXN-110, 130 g/module

Delay

3–5 s

Service temperature

-46°C to +63°C

Storing temperature

-54°C to +71°C

Status

Combat proven and in production.

NSN 1330-58-000-9745 with Comp B filling; NSN 1330-58-000-9744 with PBXN-11 filling.

Contact

International Sales & Marketing

Post
P.O. Box 142, NO-2831 Raufoss, Norway
