Nammo

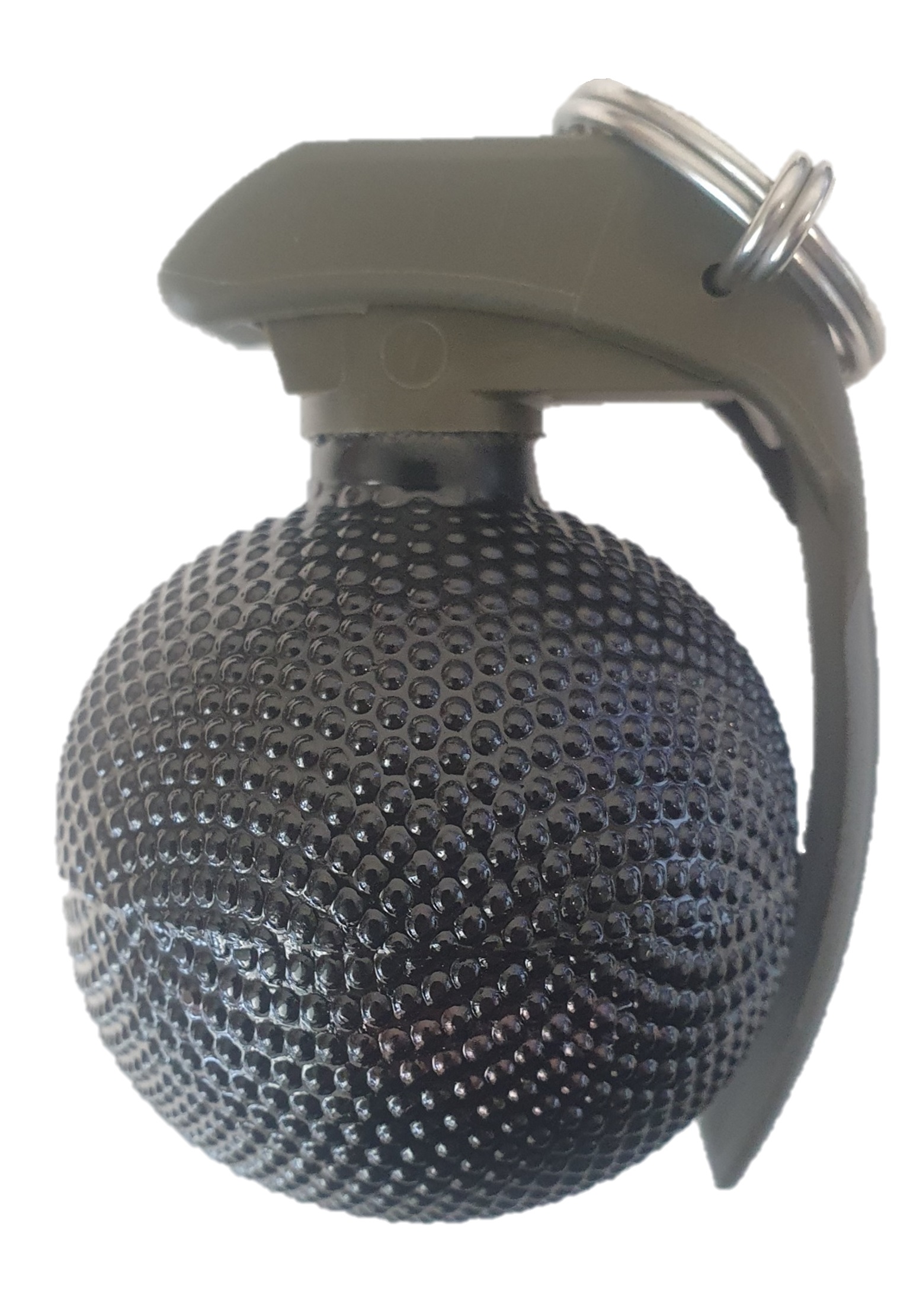

Fragmentation Hand Grenade HGF165-3.5

Fragmentation Hand Grenade HGF165-3.5

U.S. Air Force photo/Alejandro Pena

HGF is meant for defensive use and provides a dense cloud of fragments with a nearly even 360˚ distribution. The steel bodies are uniformly pre-fragmented to provide optimized penetration performance with a distribution of near-equal-sized fragments. With a compact size and weight, HGF165-3.5 is designed to be used in urban areas.

Product specifications

Dimensions

Height with fuze 93 mm Steel body diameter 63 mm

Weight

450 g

Explosive filling

Comp B (hexotol 60/40) or PBXN-110, 165 g

Delay

3–5 s

Total number of fragments

2 500

Service temperature

-46°C to +63°C

Storing temperature

-54°C to +71°C

Status

HGF165-3.5 is qualified withthe Finnish Defence Forces.
NSN 1330-58-000-1750.
