Fragmentation Increment Sleeve for Offensive Hand Grenades

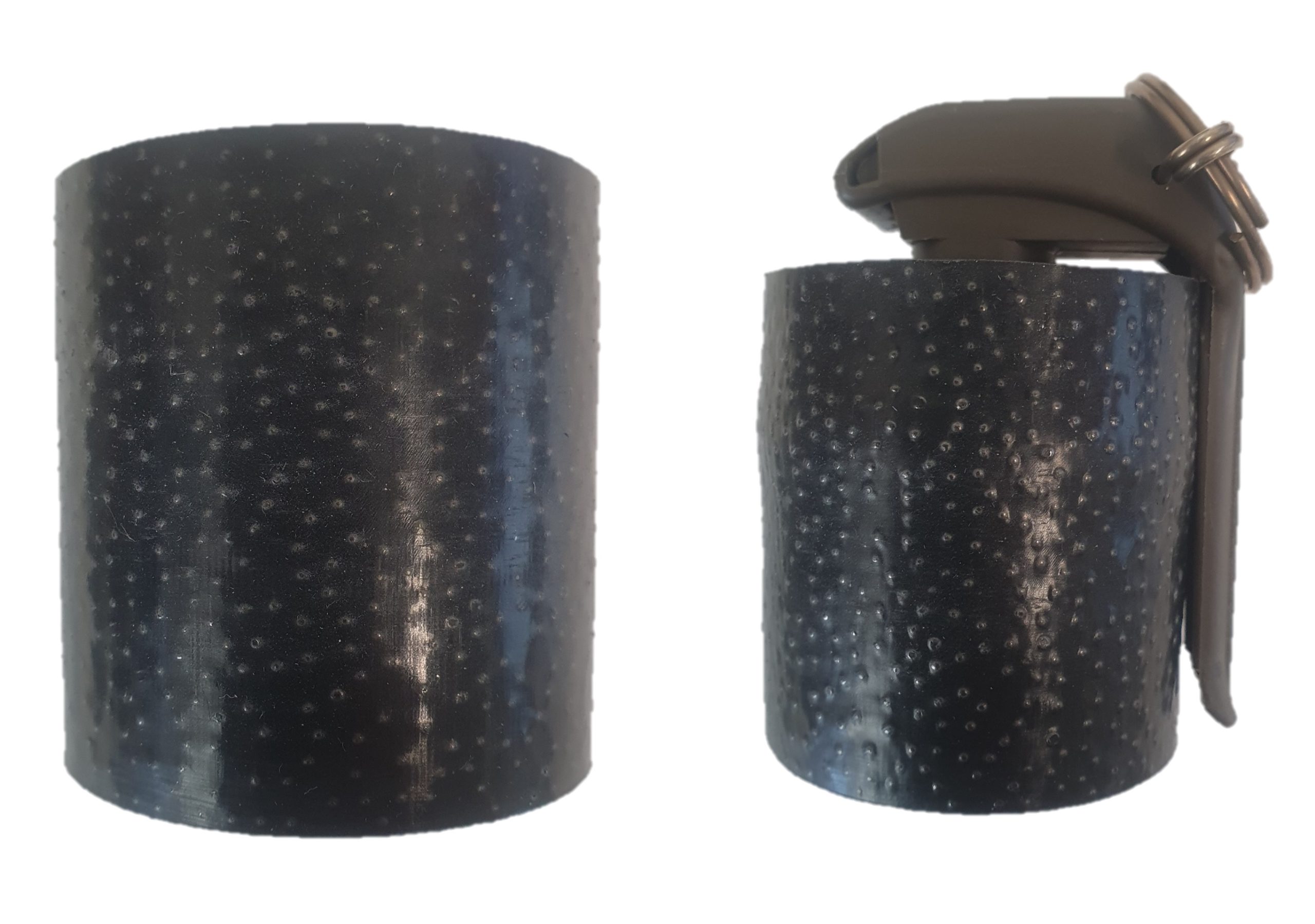

The sleeve can be installed and removed without any additional tools. Elastic material enables easy stowing in pockets and ensures the sleeve stays on the grenades body when thrown. It is installed by sliding it on from the bottom side of the hand grenade. The sleeve can be used with any Nammo Offensive Hand Grenade models.
Fragmentation size and count
Typically Ø2,2…3,5 mm. Up to 1 800 spherical pre-formed fragments per sleeve
Weight
0,1…0,15 kg depending on the fragment size and weight
Dimensions
Diameter of grenade body with sleeve approx. Ø60 mm
Dispersion/spread
At least 4 penetrations/m2 at 10 m distance from point of detonation with standard fragment
Penetration capability
At least 2 mm Al at 10 m distance from the point of detonation with standard fragment; corresponding user’s normal combat clothing
Safety distance
20 m with standard fragment, determined as 0 pcs penetration in 2 mm Al; corresponding user’s normal combat clothing
NOTE: All Technical Characteristics depend on the fragment size and performance. Actual performance characteristics can be adjusted in accordance with the customer requirements.
