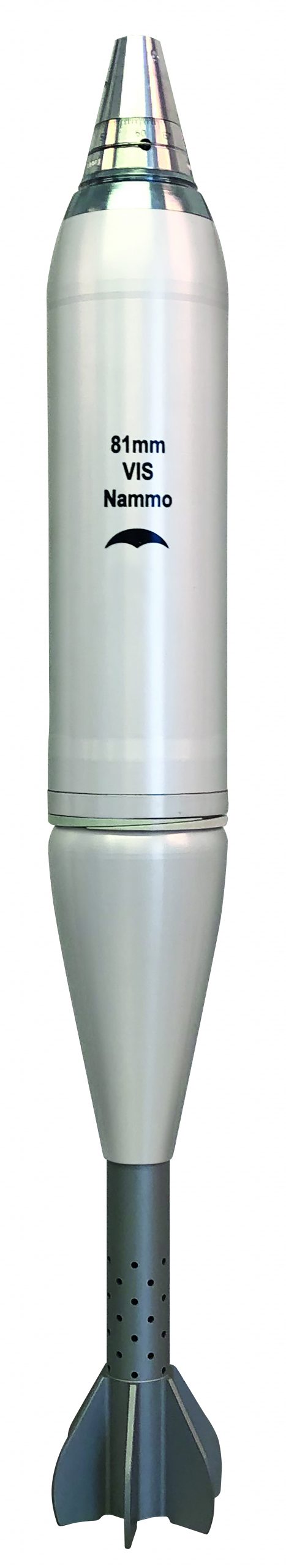

81 mm Mortar Illuminating Round

81 mm Mortar Illuminating Round

U.S. Marine Corps photo by Cpl. Roderick L. Jacquote

The 81 mm Mortar Illuminating Round is used for illumination of target areas during night missions or low-visibility conditions. The round functions by way of a time fuze, at a height of 400 m wherein the front and rear body are split, ejecting the parachute and illumination kit. The round is delivered as a ready-to-fire in 2-round containers, equipped with fuze and charge system.

Product specifications

Flying mass

4.0 kg

Number of charges

0+6

Muzzle velocity

75-316 m/s

Max. range

5 400m

Maximum gas pressure

96 MPa

Luminosity

1 300 000 Cd

Illuminating duration

Minimum 50 s

Service temprature

-46°C to +63°C

Status

Qualified. Compatible with all standard smooth bore muzzle loaded 81 mm mortar systems.
