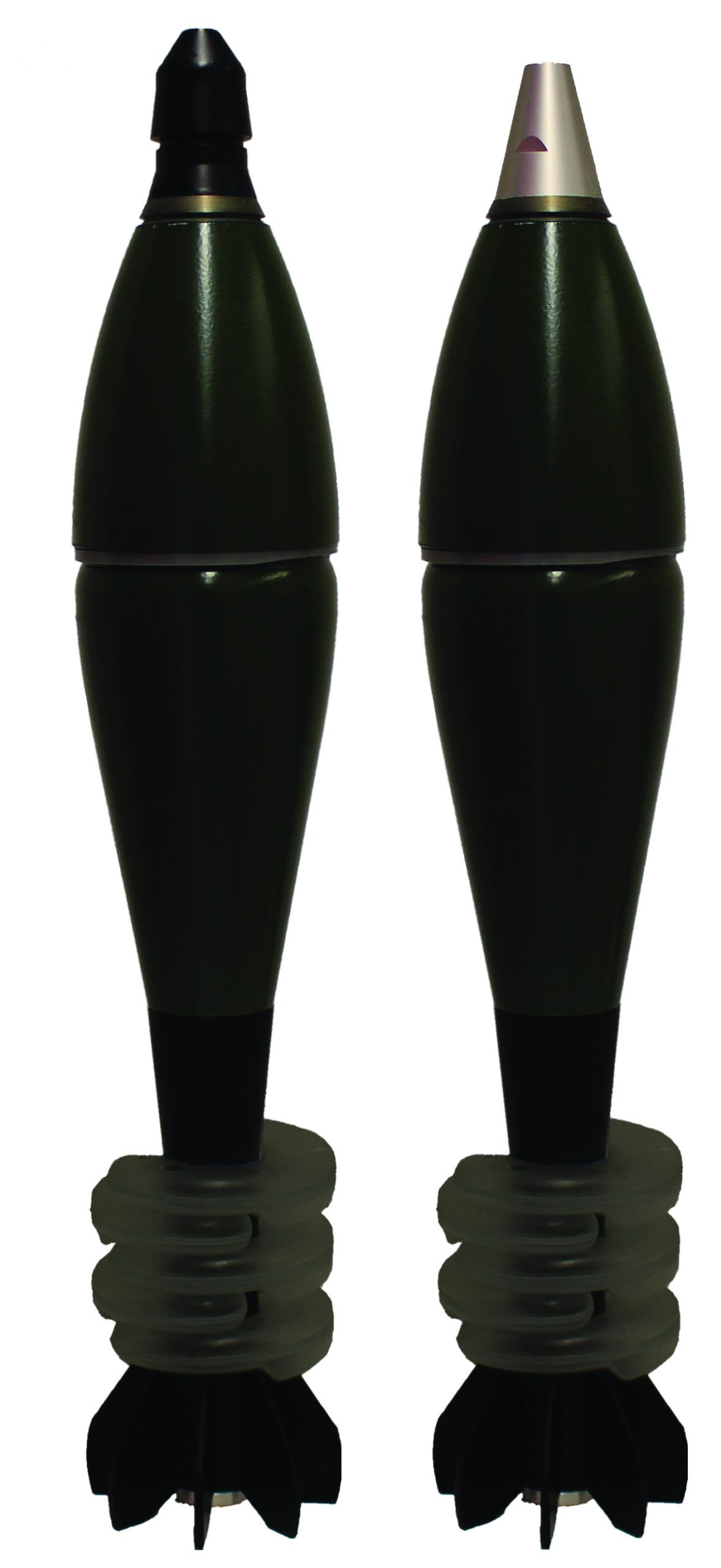

120 mm Mortar High Explosive Round
Photo: Matthew Day
Explosive filling
TNT (2.0 kg)
Shell body
Cast iron
Flying mass
13.0 kg
Number of charges
0+6
Muzzle velocity
103–455 m/s
Min/max range, 3 m barrel
8 400 m
Min/max range, 2 m barrel
8 000 m
Min/max range, 1.6 m barrel
7 800 m
Maximum gas pressure
≤ 164 MPa (ESCP, STANAG 4110)
Service Temperature
-46°C to +63°C
Status
In production and qualified. Compatible with all standard smooth bore muzzle loaded 120 mm Mortar Systems and Patria’s Turreted Mortar Systems (AMOS® and Nemo®) when equipped with stub case.
