81 mm Mortar High Explosive Round

81 mm Mortar High Explosive Round

U.S. Marine Corps photo by Cpl. Elize McKelvey/Released

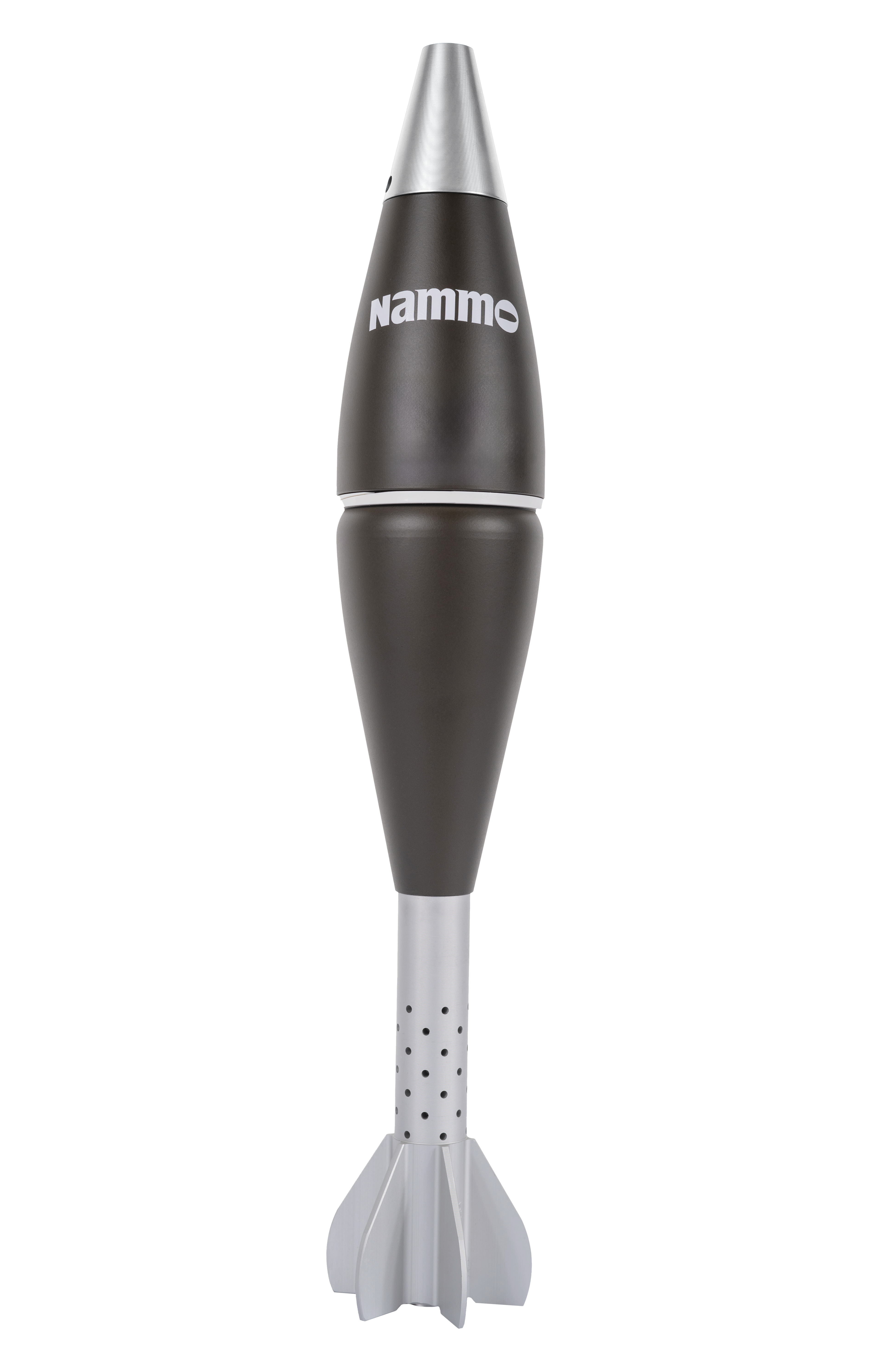

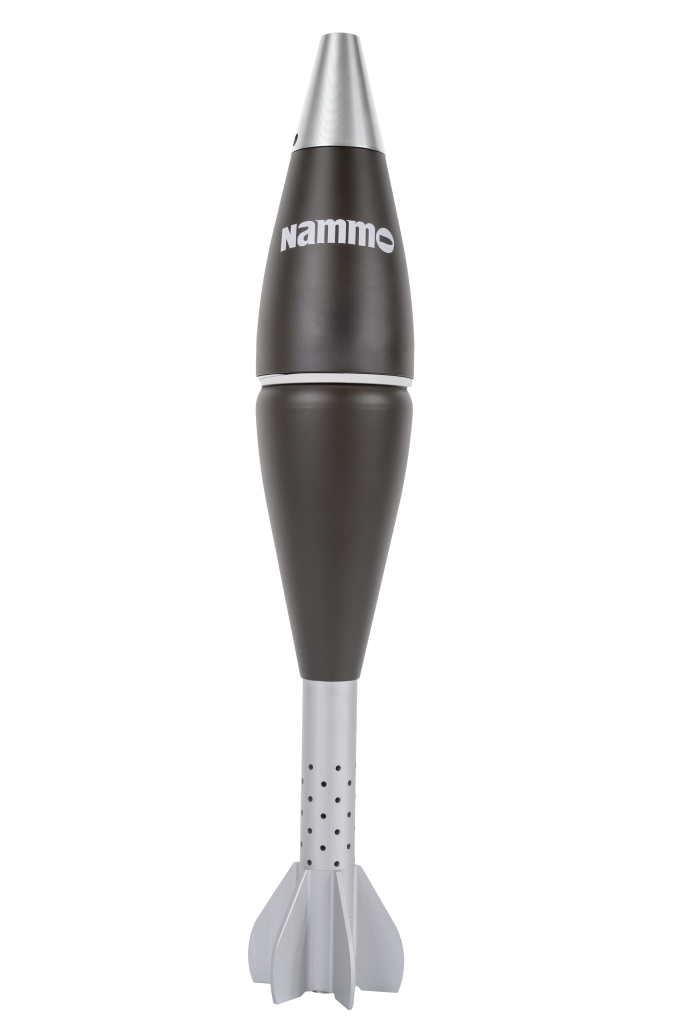

The 81 mm Mortar High Explosive (HE) round is a fin-stabilized, naturally fragmenting round intended to be fired from muzzle loading smooth bore mortars. The round is provided with point-detonating fuze and it is delivered as a ready to fire in resealable multi-round containers, equipped with fuze and charge system.

Product specifications

Explosive filling

TNT (0.7 kg)

Shell body

Cast iron

Flying mass

4.1 kg

Number of charges

0+6

Muzzle velocity

76-310 m/s

Min./Max. range

150 m / 5 800 m

Max.gas pressure

≤ 96 MPa (ESCP, STANAG 4110)

Service temprature

-46°C to +63°C

Status

In production and qualified. Compatible with all standard smooth bore muzzle loaded 81 mm mortar systems.
