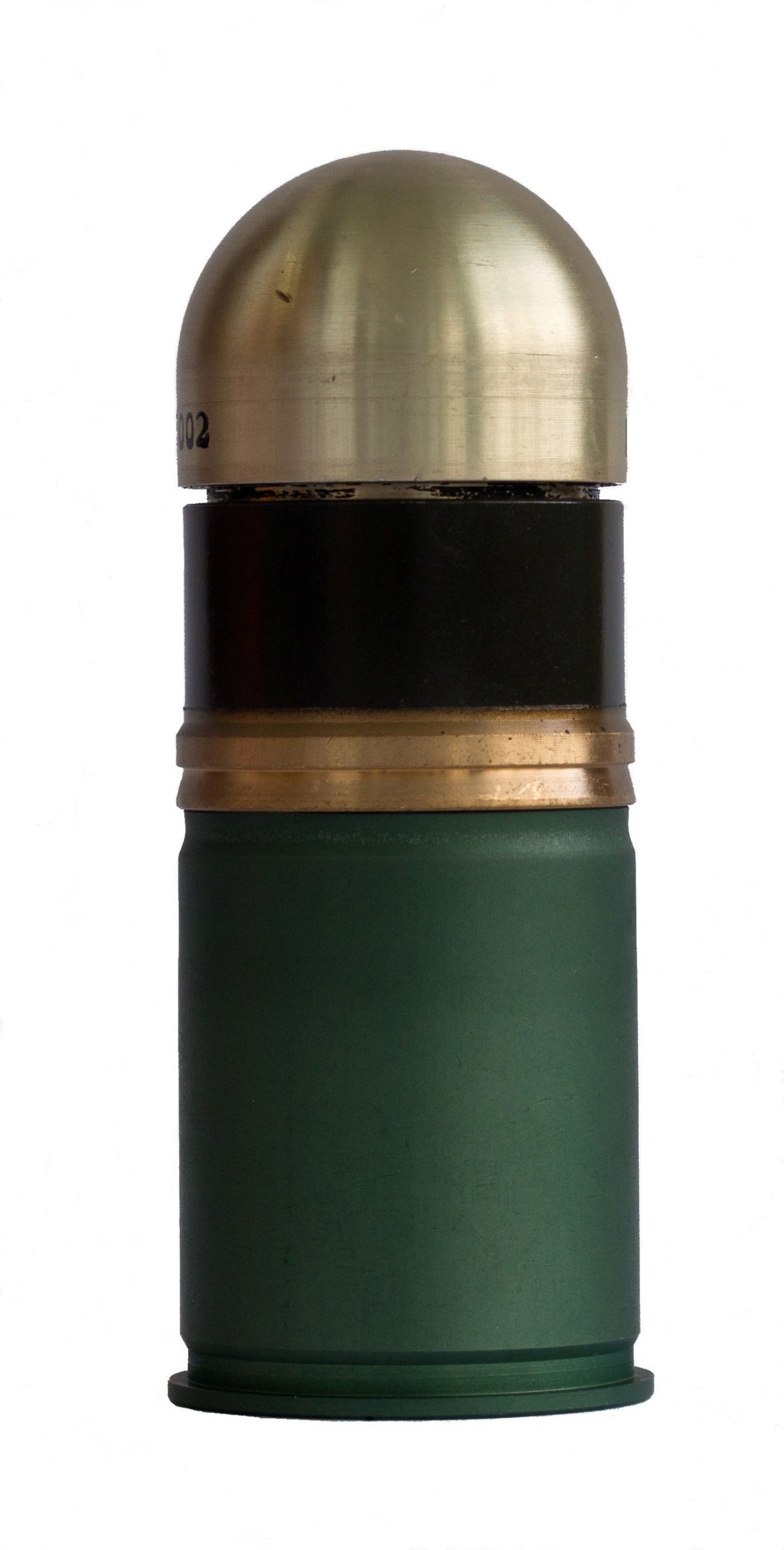

40mm x 53 HEDP AND HEDP-SD

40mm x 53 HEDP AND HEDP-SD

U.S. Marine Corps photo by Lance Cpl. Aaron K. Fiala/Released

Dual Purpose HV grenades for use on Automatic Grenade Launchers (AGL) against a variety of targets (light armor, materiel or dismounted infantry). Available with standard PD or self-destruct fuzes.

Product specifications

Projectile weight

245 g

Muzzle velocity

240 m/s

Maximum dispersion

Typical H&V deviation < 1 mils

Penetration

50 mm (269–352 HB) at 65 m

Tracer/self-destruction

N/A / 14 s

Service temperature

-46˚C to +63˚C

Safety temperature

-54˚C to +71˚C

Status

Qualified for use in grenade launcher Mk19 and LAG 40. Tested in Mk47 and H&K grenade launcher. HEDP round homologated by Spanish MoD.
