Nammo

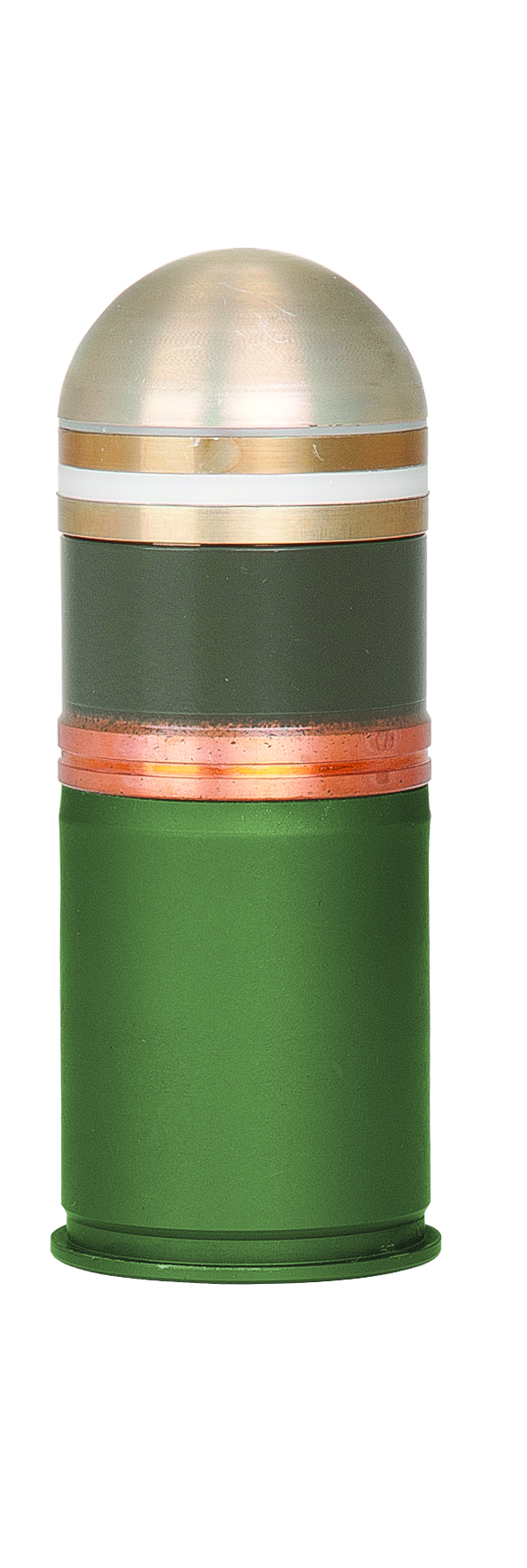

40mm x 53 HEDP-AB

40mm x 53 HEDP-AB

U.S. Marine Corps photo by Lance Cpl. Alison Dostie

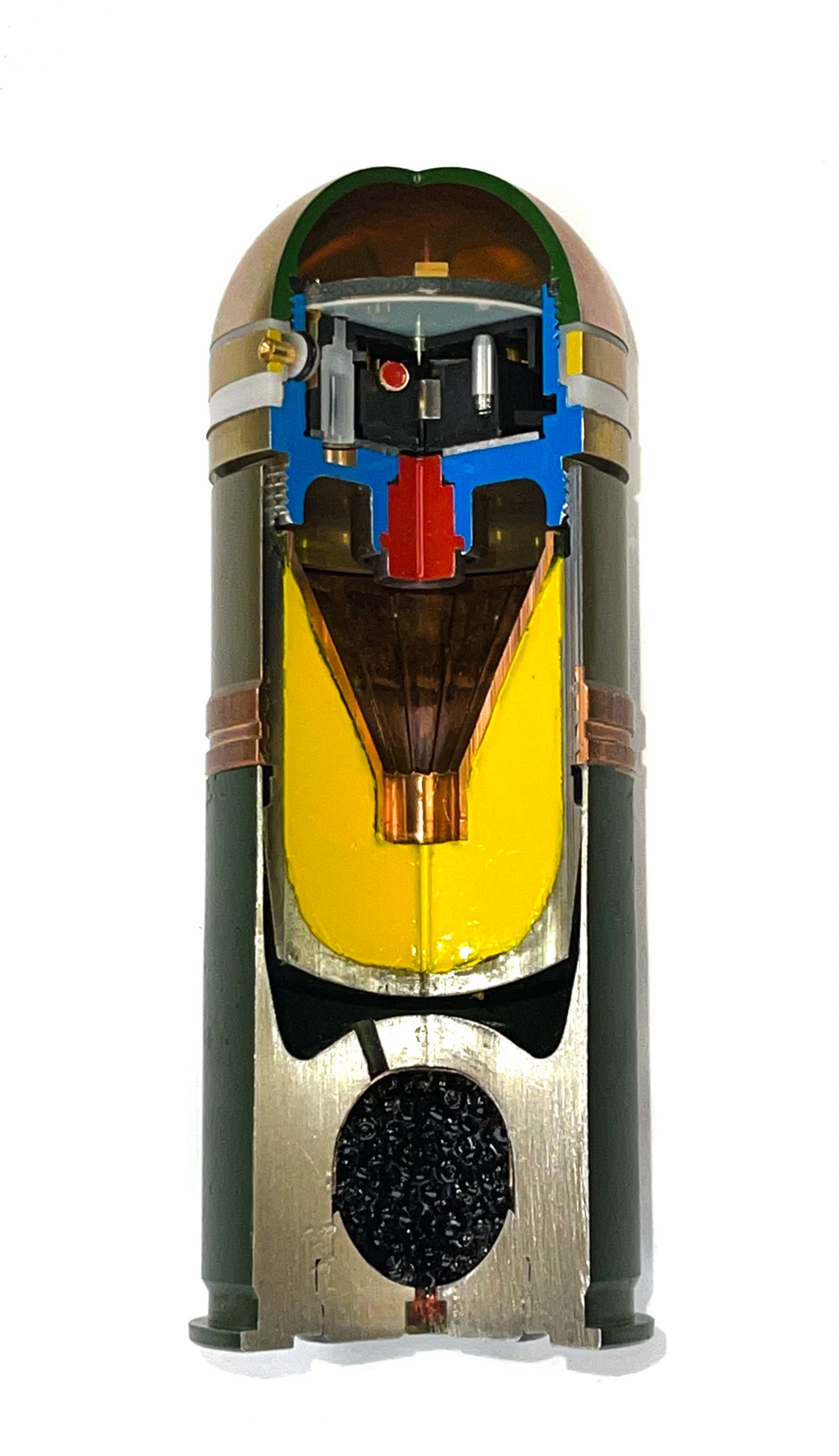

The High Explosive Dual Purpose Airburst (HEDP-AB) ammunition is specifically designed for the Mk47 gun system. The Mk314 HEDP round provides airburst with pinpoint accuracy. The HEDP warhead provides fragmentation, penetration, blast and incendiary effect with a high reliability. This allows for different target scenarios with only one type of 40 mm round.

Product specifications

Projectile weight

247 g

Muzzle velocity

240 m/s

Maximum dispersion

1.0 mils

Number of fragments

1 200

Penetration

> 65 mm RHA

Tracer/self-destruction

NA/electronic SD

Airburst accuracy

1 ms resolution

Service temperature

-32˚C to +63˚C

Safety temperature

-46˚C to +71˚C

Status

Qualified by the US Navy.
