Bunker Defeat Munition (BDM)

Bunker Defeat Munition (BDM)

The US Army's Bunker Defeat Munition

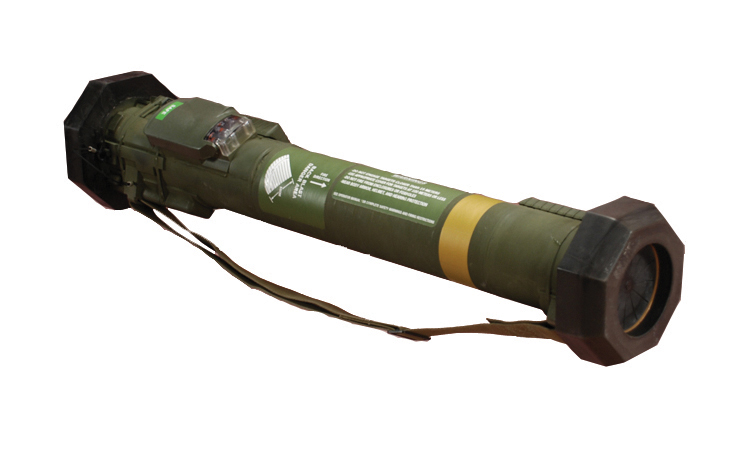

BDM is the first lightweight shoulder fired weapon system with true Multipurpose effectiveness, and uses the same High Explosive Dual Purpose (HEDP) rocket as in the USMC SMAW. The HEDP rocket is packaged in a rugged, compact telescoping, disposable launcher that has all gunner controls needed to aim and fire the weapon. The BDM is highly effective against double reinforced concrete, triple brick, solid adobe, earthen fortifications, caves and technical vehicles.

M141

System weight and caliber

7.2 kg, 83 mm

Carry/extended length

812 mm/1 372 mm

Warhead type (explosive)

Anti-Structure/Anti-Fortification (Aluminized HE)

Fuze

Muzzle velocity

220 m/s

Minimum, effective and maximum range

15, 250 and 2 000 m

Service temperature

-45°C to +70°C

Status

US Type Classified:
NSN 1340-01-443-5477 DODIC HA08.
Combat proven and in production

Contact

Quoc Bao Diep

Vice President, Shoulder Fired Systems, Nammo
