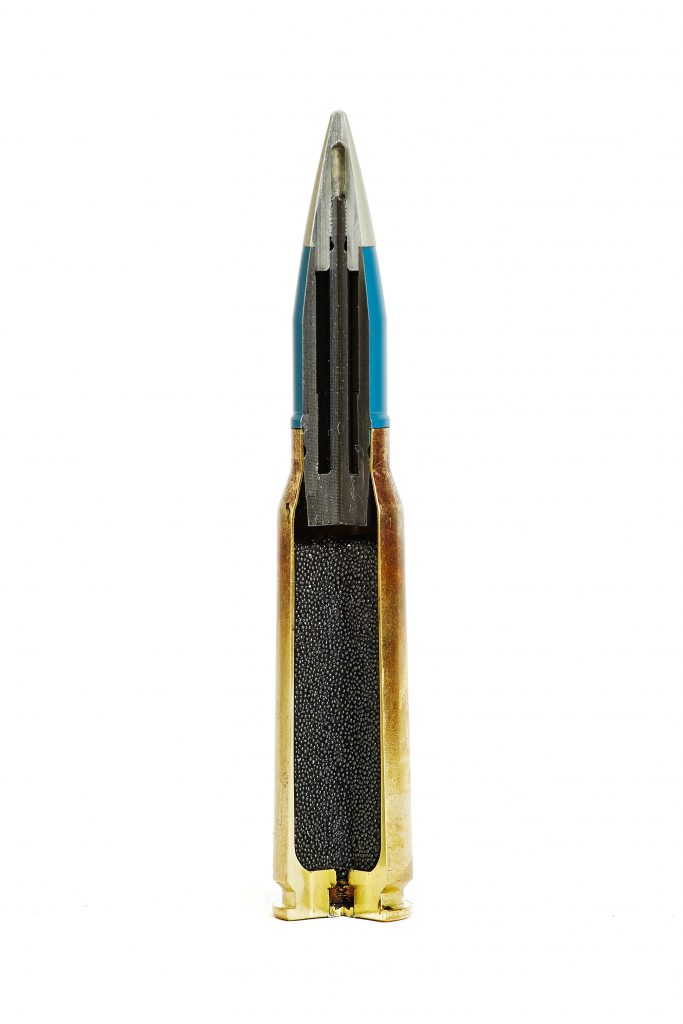

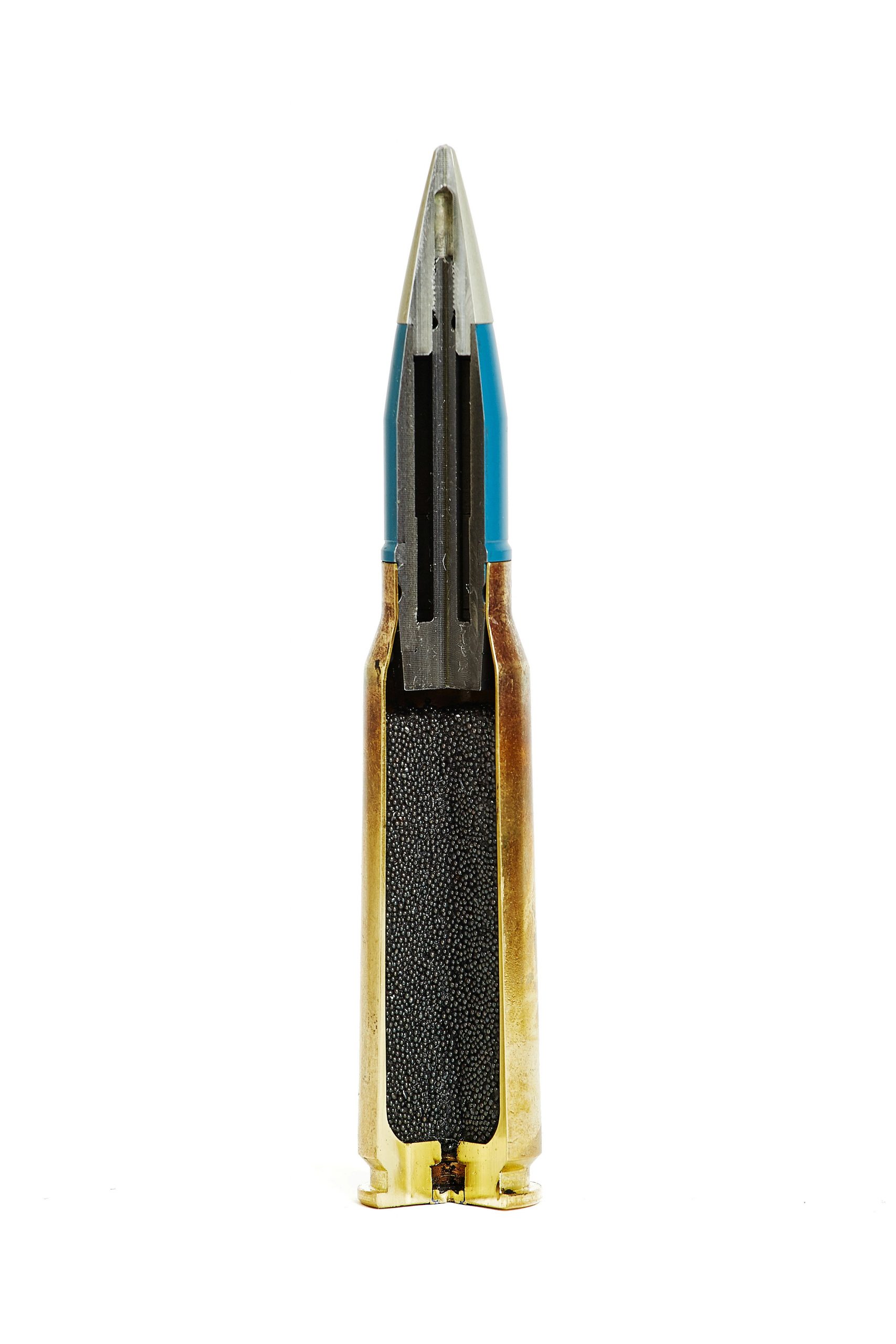

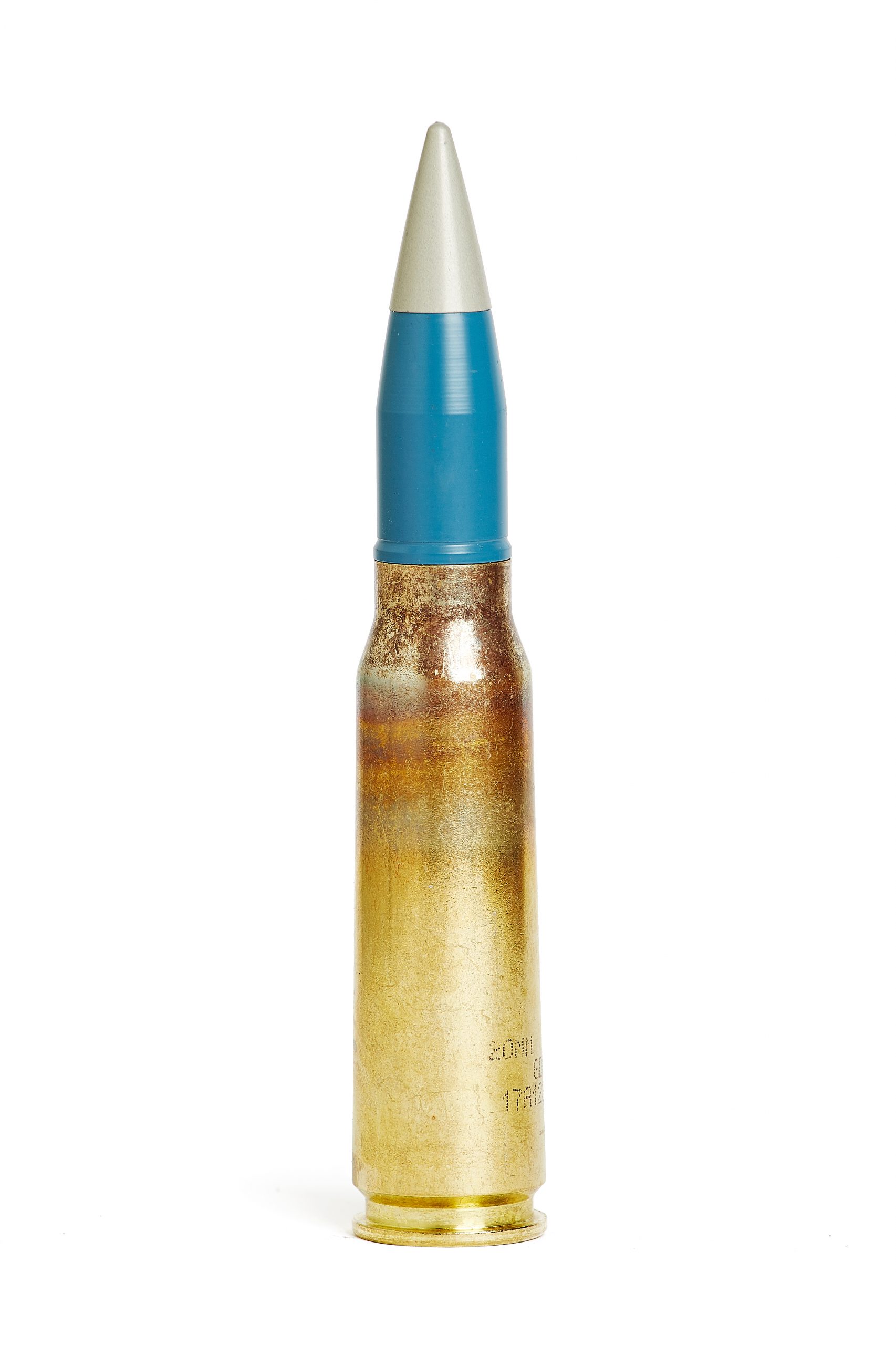

20 mm x 102 TP-RRR LD and TP-RRR LD M2

20 mm x 102 TP-RRR LD and TP-RRR LD M2

Photo: Hanne Hernes, The Royal Norwegian Air Force

The 20 mm x 102 TP-RRR LD ammunition is designed for training purposes and has a Reduced Ricochet Risk (RRR) effect. The projectile disintegrates when impacting the target, creating high drag fragments with no ballistic properties which are unable to reach the aircraft flight path, providing a reduced surface danger zone. The rounds are successfully used as suppressive fire in offensive missions when low collateral damage is of importance. With its low drag design, they have a ballistic match to the 20 mm MP LD M70 A1. The rounds are available with both copper (TP-RRR LD) and sintered iron (TP-RRR LD M2) rotating bands, and comply with STANAG 3585 requirements.

Product specifications

Projectile weight

100 g

Muzzle velocity

1 039 m/s

Dispersion

Mean R ≤ 0.167 m at 200 m

Service temperature

-54°C to +71°C

Status

Qualified for use in M61, M197 and M39 guns
