25mm x 137 Multipurpose Tracer SD

25mm x 137 Multipurpose Tracer SD

U.S. Marine Corps photo by Lance Cpl. Hannah Q. Cappellini, 2d MARDIV, Combat Camera/Released

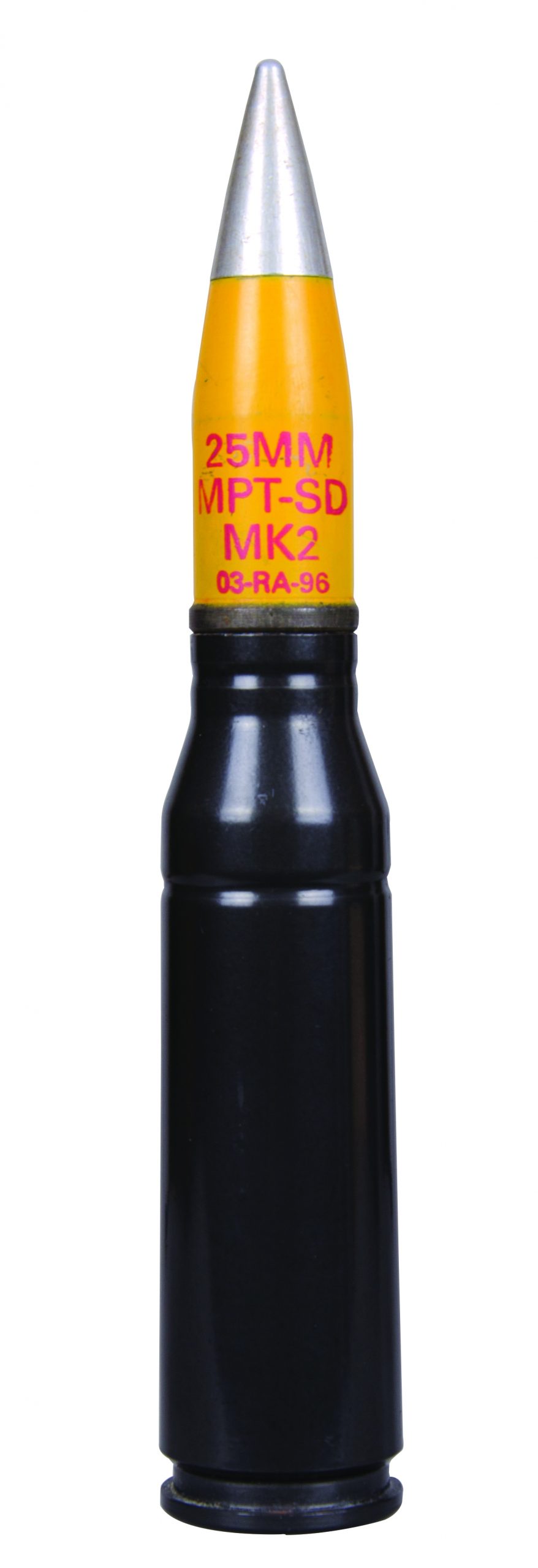

The 25 mm x 137 Multipurpose ammunition with tracer and self-destruct device (MP-T SD) is designed to defeat a broad range of targets ranging from all kinds of soft skinned targets up to semi-hard armored targets and building constructions. The round is well known for its low dispersion and the self-destruct function minimizes the risk for collateral damage. Initiated by pyrotechnics with a natural delay to ensure delivery of the incendiary, blast and fragmentation effects inside the target.

Product specifications

Projectile weight

183 g

Muzzle velocity

1 100 m/s

Tracer/self-destruction

Minimum visible in 5.3 s, Self-destruction after minimum 5.3 s

Maximum dispersion

Maximum 1.0 m at a range of 1 000 m (H&V)

Penetration

15 mm armor plate at 0° NATO at 500 m

Self-destruction

Yes

Service temperature

-54°C to +70°C

Status

Qualified for use in Bushmaster M242 and the KBA gun.
