155 mm High Explosive Extended Range

155 mm High Explosive Extended Range

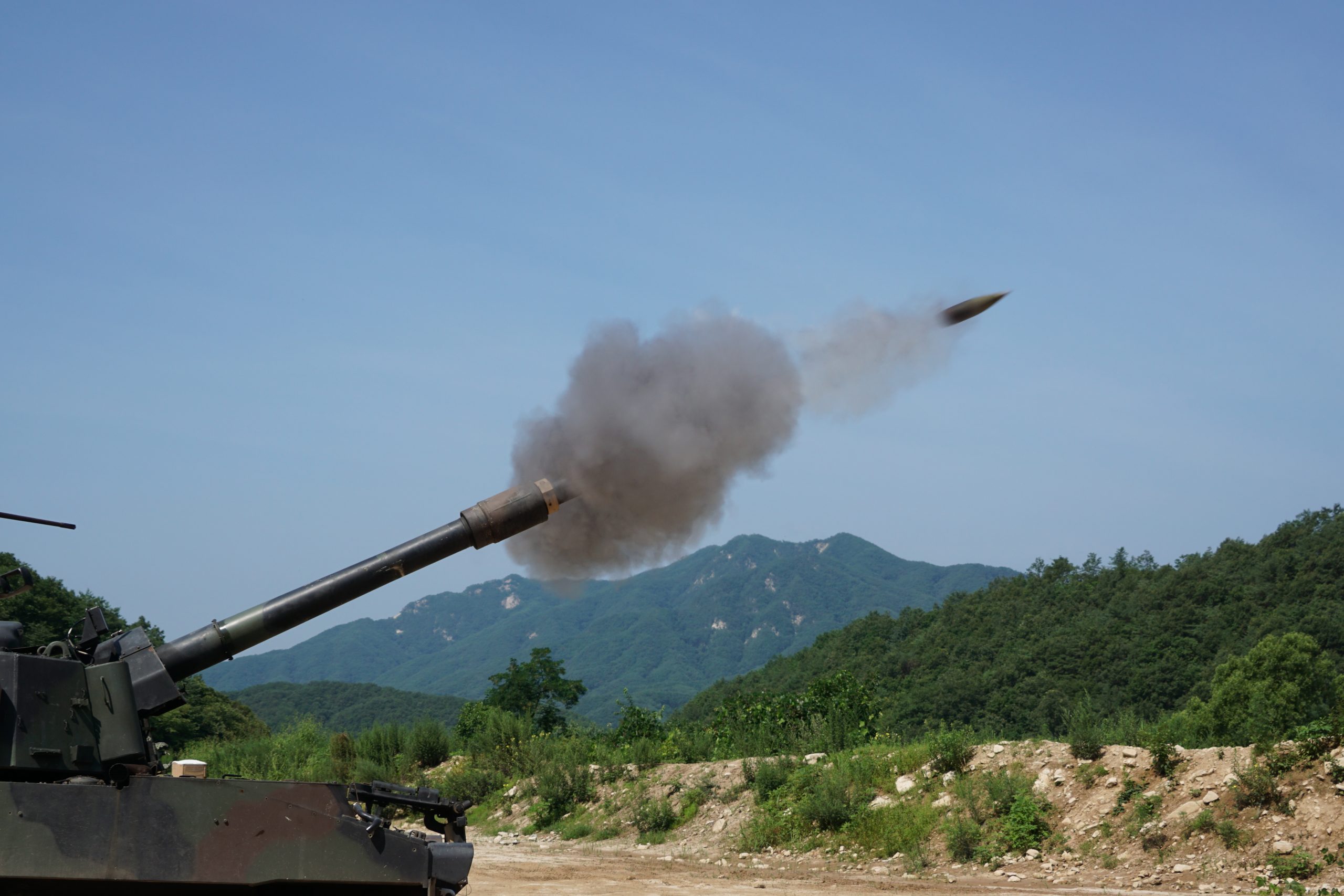

U.S. Army photo by Capt. John DePinto, 1st Battalion, 82nd Field Artillery Regiment, 1st Armored Brigade Combat Team, 1st Cav. Div.

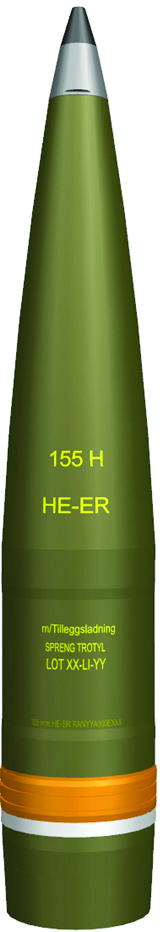

The 155mm IM HE-ER has a verified range of more than 40 km when fired from a modern L52 JBMoU gun system. Low round to round dispersion, combined with an enhanced blast and fragmentation effect, optimizes the impact on semi-hard targets at long firing ranges. The round is designed to defeat light armor and soft targets, and for increased flexibility incorporates an interchangeable base bleed and hollow base.

Product specifications

Projectile weight with fuze

44.2 kg

Muzzle velocity

935 m/s (6 DM72/& in L/52)

Max. range with base bleed

L52 gun: 41 km/L39 gun: 30 km

Max. range with hollow base

L52 gun: 32 km/L39 gun: 24 km

Dispersion (20 km w/hollow base)

PE length < ± 50 m/width ± 10 m

Explosive

9 kg TNT/Comp B

Service temperature

-46ºC to +63ºC

Status

Qualified.
